LogManager APK

LgoManager performs a setup of memory data and download of OB-LINKTYPE-001/FA20.

Download LogManager 1.03 APK

App Description

LogManager is hks_power,logmanager,maps,navigation, content rating is Everyone (PEGI-3). This app is rated 5 by 1 users who are using this app. To know more about the company/developer, visit HKS Co.,Ltd. website who developed it. jp.co.hks_power.app.LogManager.apk apps can be downloaded and installed on Android 4.1.x and higher Android devices. The Latest Version of 1.03 Available for download. Download the app using your favorite browser and click Install to install the application. Please note that we provide both basic and pure APK files and faster download speeds than APK Mirror. This app APK has been downloaded 3+ times on store. You can also download jp.co.hks_power.app.LogManager APK and run it with the popular Android Emulators.

LogManager is the app for HKS OB-LINK TYPE-001 and OB-LINK TYPE-FA20.
OB-LINK TYPE-001 / TYPE-FA20 are the devices to extract vehicle/engine data from the on board diagnostics port (OBDⅡ) by connecting the coupler with OBDⅡ and send the data via Bluetooth to an Android device (Tablet and Smartphone).
OB-LINK TYPE-001 / TYPE-FA20 have the memory function.  With this memory function, the app “LogManager” can preset the logging data parameters and sampling time automatically and extract the date from the memory of the OB-LINK TYPE-001 / TYPE-FA20.
Once the IG-ON signal is detected, the following 5 standard items(*1)　and optional vehicle data are automatically logged:
*1: accumulated driving distance, accumulated fuel consumption, maximum water temperature, maximum oil temperature, and engine error code(*2).
*2:The time stamp of up to 20 engine error codes can be memorized when detecting error(s).
Memory time setting is established based on the sampling time interval as shown below:
Sampling ・・・・ Memory Time
100 milliseconds ・・・ 139 minutes
200 milliseconds ・・・ 278 minutes
500 milliseconds ・・・ 695 minutes
1 second ・・・ 23 hours
5 seconds ・・・ 116 hours
10 seconds ・・・ 232 hours
When the memory is made full, the data are overwritten with new data.
LogManager can obtain the vehicle data without starting CarscopePlus.  (The location information cannot be obtained.)
LogManager is the best app for those who want to understand the vehicle’s conditions and enjoy circuit driving.
ATTENTION: IMPORTANT SAFETY INFORMATION, WARNINGS AND DISCLAIMERS
※Do not use, operate, or look at your Android device and LogManager while driving. Please use LogManager responsibly after stopping your car in a safe place.
※It may become very hot in a car depending on weather conditions (especially in places like a dashboard which is exposed to direct sunlight). Therefore, you must use your Android device under the appropriate conditions (e.g., the appropriate ranges of temperature and humidity) stated in the manual of your Android device. Using, placing, or leaving your Android device under very hot conditions might cause deformation, breakdown, battery leakage, explosion, heat-generation, fire, and deterioration of performance and/or life of the device. In addition, heat from the device might cause burns on your skin.
※Your Android device might consume more battery power than usual in using LogManager.
※Vehicle data is stored on storage media such as an SD card in your Android device. Vehicle data cannot be stored without such storage media.
※LogManager requires an Android device with Android OS (Version 4.1 or later) and Bluetooth function (SPP profile). WE DO NOT WARRANT THAT LogManager WILL WORK ON EVERY KIND OF ANDROID DEVICE.
※Depending on the Bluetooth connection, the vehicle data might not be displayed or stored correctly.
※Do not leave your Android device in your car. When you get out of your car, be sure to take it with you.
※Be careful that your Android device does not drop or move from its installation site while you are driving.
※Take care not to allow the power cord to interfere with your driving while using your Android device.
※Do not use LogManager close to infants or small children.
※LogManager might frequently access the Internet; therefore, we suggest that you to sign up for flat-rate access services to the Internet for greater savings with respect to your packet communication fee.
※WE ARE NOT RESPONSIBLE FOR ANY LOSSES OR DAMAGES, INCLUDING BUT NOT LIMITED TO, BREAKAGE OR DAMAGE TO YOUR ANDROID DEVICE, IN CONNECTION WITH YOUR USAGE OF LogManager.
※WE ARE NOT RESPONSIBLE FOR ANY MONETARY DAMAGES AND/OR LOST PROFITS CAUSED BY ANY DISPLAYS AND/OR WARNINGS RELATED TO LogManager.
※WE ARE NOT RESPONSIBLE FOR ANY DATA LOSS FROM YOUR ANDROID DEVICE AND/OR YOUR STORAGE MEDIA IN RELATION TO USING LogManager.
※WE ARE NOT RESPONSIBLE FOR ANY TRAFFIC ACCIDENTS WHICH OCCUR WHILE USING LogManager.

App ChangeLog

• v1.03
• 車両通信タイプSUBARU2 を追加
• v1.02
• ログデータのグラフ表示対応

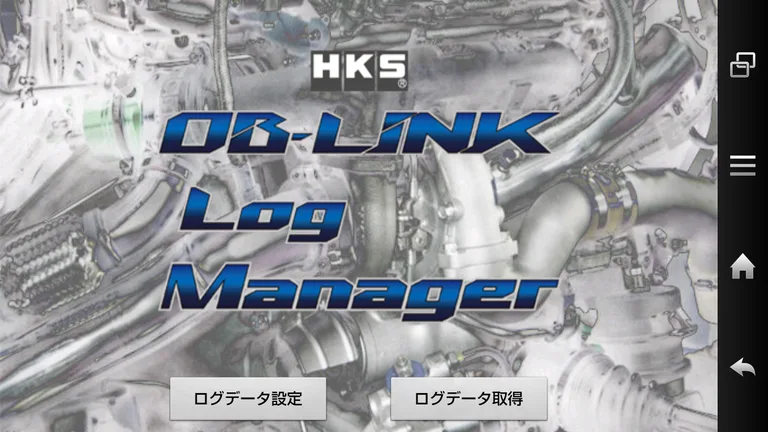

App Screens
