USB Accessory Oscilloscope
A widget for Android phones/tablets to view, measure, and capture live waveform
BYLi · nz.ac.cpit.mg7001.oscilloscopeAdv
UpdatedMar 3, 2026
PublishedMar 11, 2021
Packagenz.ac.cpit.mg7001.oscilloscopeAdv
MD5a3e486a3e4c09db0a7fde457ac451c24
SHA1 (signer)07:4A:56:65:0B:DA:E3:82:8D:05:7E:FA:12:E2:B9:C2:D3:1F:4F:49
Signed byCN=Brian Li
Malware scanTRUSTED
Websitehttp://www.cpit.ac.nz
Contact[email protected]
What's new
Added a feature of downloading raw data when saving screenshots
Description
This is an improved version of Jeremy's Oscilloscope.
Features include:

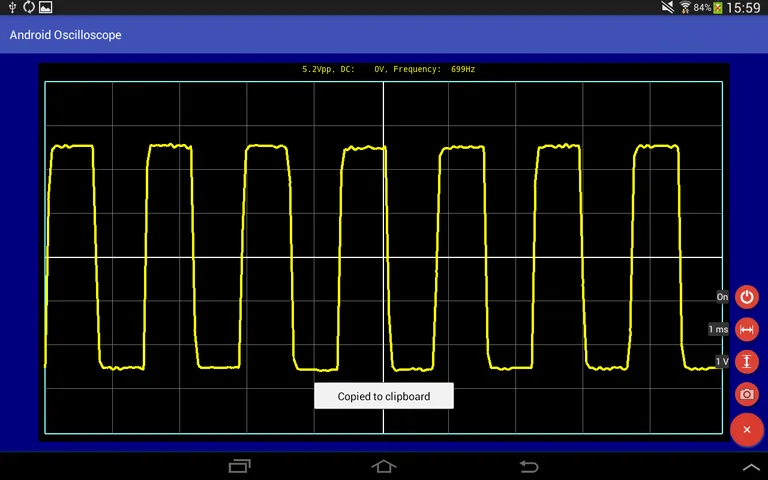

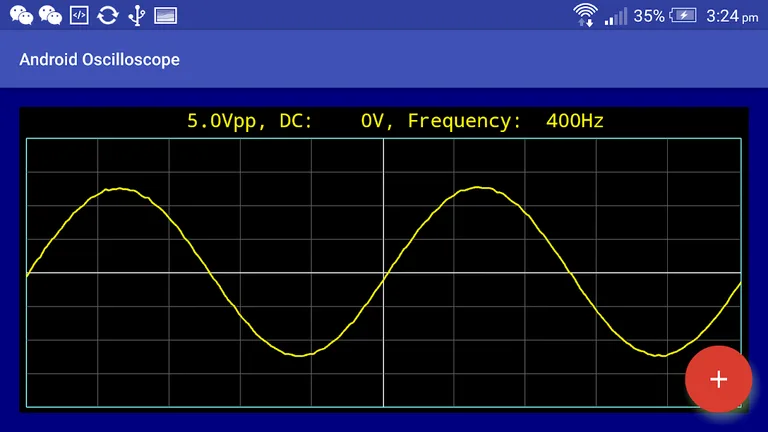

- View, measure, and capture waveform in real time
- Automatically calculate frequency, Vpp, and DC offset
- Frequency from 0.1Hz to 20kHz
- Input voltage from +/-1mV to +/-20V
- ADC resolution: 8 to 10 bits (depending on sampling rate)
- Sampling rate up to 50kHz
- 16 different T/div from 5sec to 50us
- 10 different V/div from 5V to 5mV
- Powered by micro-USB cable
- Providing charging power to the Android phone/tablet
Features include:
- View, measure, and capture waveform in real time
- Automatically calculate frequency, Vpp, and DC offset
- Frequency from 0.1Hz to 20kHz
- Input voltage from +/-1mV to +/-20V
- ADC resolution: 8 to 10 bits (depending on sampling rate)
- Sampling rate up to 50kHz
- 16 different T/div from 5sec to 50us
- 10 different V/div from 5V to 5mV
- Powered by micro-USB cable
- Providing charging power to the Android phone/tablet
Required features
- Faketouch android.hardware.faketouch
- Usb Accessory android.hardware.usb.accessory
Permissions (2)
USB Accessory Oscilloscope requests the following Android permissions:
- Post Notifications android.permission.POST_NOTIFICATIONS
- Nz Ac Cpit Mg7001 Oscilloscopeadv Dynamic Receiver Not Exported Permission nz.ac.cpit.mg7001.oscilloscopeAdv.DYNAMIC_RECEIVER_NOT_EXPORTED_PERMISSION
