SQ MixPad

SQ-MixPad allows control of an SQ console over a wired or wireless network. It can be used simultaneously and independently of the SQ surface, so it can provide supplementary local control as well as giving the engineer the freedom to move around and mix from different listening positions. Three devices running SQ-MixPad can be connected and used at the same time as using the SQ surface, giving four separate points for control of all mixes. An ‘Offline’ mode allows for SQ show files to be edited and managed without connection to a console.

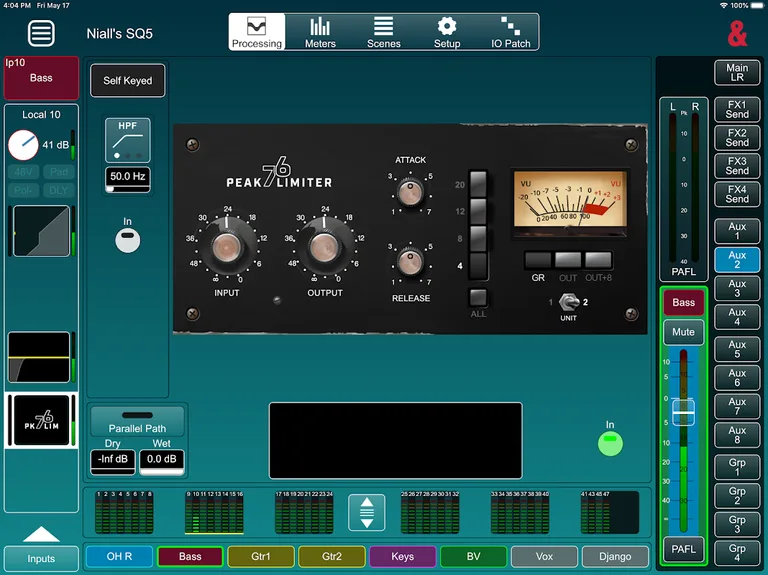

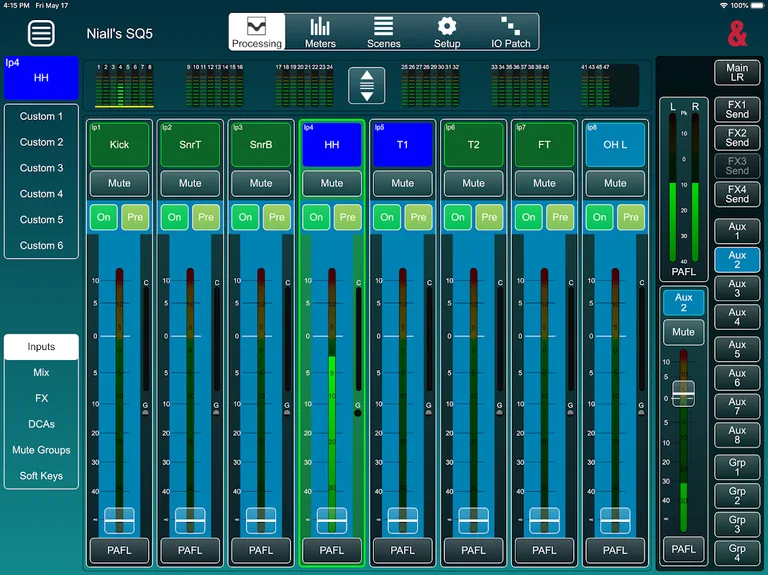

 V1.6.0 - This version works with SQ consoles running firmware V1.6.x It provides the following: Level and Routing Control - Send levels, panning, assignments, pre/post settings and mutes from all channels to all mixes Master send levels for all mixes Send and Return levels for FX Routing screen with overview and full control DCA and Mute Group control, including assignments Processing Control - Input channel Preamp/DEEP Preamp Model/HPF/Gate/Insert/PEQ/Compressor Mix channel Ext In/Insert/GEQ/PEQ/Compressor DEEP compressors and GEQ’s FX Parameters and FX Return PEQ Access to all Libraries Patching – Full patching matrix for all Inputs/Outputs and Tie Lines ‘1-to-1’ diagonal block patching Offline Mode – Edit and manage shows, scenes and libraries without a console connection Transfer entire shows between MixPad and an SQ Share/store shows to cloud or email (when available on the device) Other features include – Scene Management Global filters, scene filters and channel safe control Works with SQ User Permissions Copy/Paste and Reset functionality Ganging setup AMM control and setup SQ-Drive Control (Online) Full control of Signal Generator and assignments 6 custom layers with the ability to copy or use/follow desk layers All input/output/processing metering Meters and Channel RTA view and control Mixer config and role setup including ‘Listen Level’ PAFL setup and selection Channel naming/colour SoftKey and MIDI strips setup and use Follow mixer Channel/Mix Select option
