RS-AJP

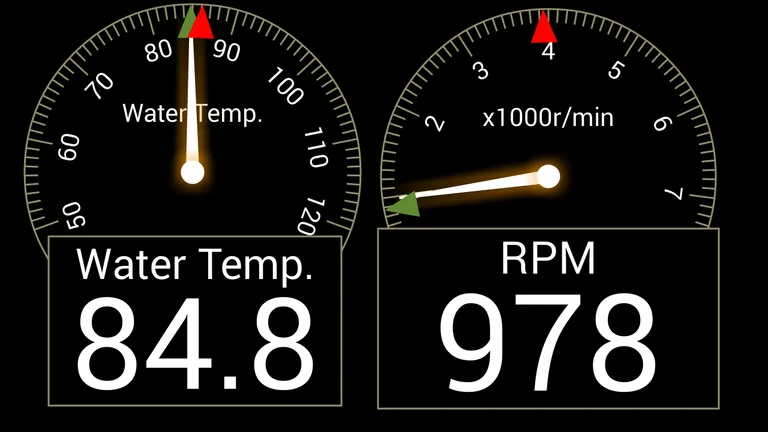

RS-AJP Diagnostic Software for TVR models with either an AJP8 or AJP6 engine. (v2.0) This App is now free. (v1.10) Added Rev-Limit Dial Warning. RPM>6000=AMBER, RPM>6500=RED. (v1.09) Added automatic reconnection logic in case the ecu is powered off while the app is running (v1.08) Just a bit of UI polishing. (v1.07) Well, it was said that the Cerbera, from 0-100mph, will out drag a Tornado Jet. A Tornado Jet has a Head Up Display, so I thought it fitting that a Cerbera should have one too :) RS-AJP (v1.07), with HUD...Enjoy! (v1.06) Now with new widgets for: MPH, KPH, LateralG, Acceleration, Bearing, Altitude, Accuracy, Number of Satellties, Gps Location and Time And Data Logging, Frost Status Indicator on the Air Temp Dials and an option to reset to a STD or GPS layout. Please note that this application implements the ServerManagedPolicy of Google LVL App Licensing (http://developer.android.com/google/play/licensing/index.html) This application can query Google Play at run time to obtain the licensing status for the current user, then allow or disallow further use as appropriate. Therefore a periodic internet connection is necessary for the successful running of this application. Connection Details: For the MBE ECU used in all AJP8 and AJP6 cars, TVR used two types of connection terminal. • A female 9-Pin D-Sub RS-232 port on the ECU motherboard. • Or an external female three way cable plug connector. Earlier cars had the 9-pin D-Sub connection, and on later cars access to the ECU was made available via the three way cable plug. To get the diagnostic software to connect to the ECU in your car you need to determine which of these two types of connection you have. If you have the earlier 9-pin D-Sub connection then all you need is a: • USB Host enabled Android device • USB OTG Cable • USB to Serial Cable If you have the later three way connection you will ALSO need: • An extra cable that has a female 9-pin D-Sub RS-232 connection on one end and a male three way cable plug connector. Detailed Cable Guide: • USB OTG Cable I have successfully used these OTG cables with a Samsung Galaxy S3 and S5. http://www.amazon.co.uk/gp/product/B005FUNQXS/ref=oh_details_o00_s00_i01?ie=UTF8&psc=1 http://www.amazon.co.uk/gp/product/B0064GZAIQ?psc=1&redirect=true&ref_=oh_aui_detailpage_o00_s00 • USB to Serial Cable This cable works, please just use it. http://www.amazon.co.uk/gp/product/B00425S1H8/ref=wms_ohs_product?ie=UTF8&psc=1 • An extra cable that has a female 9-pin D-Sub RS-232 connection on one end and a male three way cable plug connector. You can buy one from here: http://tvr-parts.com/tvr-parts/part-details/tvr-rp004/data-lead Or you can make your own: http://www.pistonheads.com/gassing/topic.asp?h=0&f=6&t=1286401&mid=0&nmt=Three+Pin+MBE+ECU+Cable+How+To+ Connection procedure: 1) Connect your cables together 2) Connect cable to your ECU (ignition off) 3) Connect cable to your Android device When you connect the cable to your Android device you will get a popup asking you to run the app.
