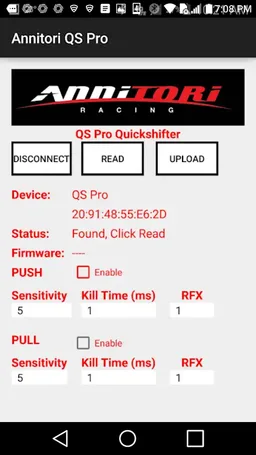

Annitori QS PRO 2

Your device must have Bluetooth v4.0 (BLE) or better, and Android v4.4 or newer. 1) Turn on your device Bluetooth. 2) Download the app to your phone or device, open the download, click install and open the app to be sure you have it. Once you are sure, close the app. 3) YOU MUST turn on “Location” inside our app or you will not be able to connect. To do this you need to go into your “Application Manager”: a Find and open “SETTINGS” b Find “Applications or Apps” and click on this. You should see a listing of all the apps you have installed on your phone. c Find “Annitori QS PRO”, apps should be listed alphabetically so it will be near the top of the list d Click on “Annitori QS PRO 2” e You should see “Uninstall” and “Force Stop” as options if you are in the correct place. If you do not see these, back out and correctly locate our app. f Once correctly in, scroll down and you will see “Permissions”. g Click on “Permissions” to open it. h You will see “Location” as an “on/off” option i Turn “Location” ON. It must be ON for the app to work! j After turning “Location” on, back out of the App Manager to your home screen, you are ready to go! 4) With the app closed, begin pairing process listed in #5 below: 5) With the app closed, start your motorcycle. This is very important, you must start your machine BEFORE you open the app, so that the BT on the shifter is searching as you open the Annitori App to connect. 6) After the bike is started, open the app and you will first see an image of our QS PRO, and then the setting page at left. Click “SCAN” at the top left so the app will begin searching for the shifter. 7) You will see your “MAC” address pop up, this is the number that appears in the box as in this image. This number is the unique number that identifies your QS PRO shifter. When this appears, the app has found your shifter. 8) Click on the “QS PRO / MAC address." Do not click on close, this will stop the process. 9) When the app has connected with the shifter it will show the screen here, with “Found, Click Read” in the status bar. 10) Note that the settings are not correct. No direction is clicked, Sensitivity is at 5, Kill Time at 1ms, RFX at 1. These are NOT settings you would ever use with our shifter, so you know you are not yet reading your QS PRO. Connected and Reading are TWO DIFFERENT things! 11) Click the center READ button. It will take a second or two to gather the information from the processor (if not, click READ again) and you will see the image displayed (or your personal settings) at left. 12) Note that when the read is correct and actual, you will see the STATUS as “Ready”, the Firmware will show a version number, and the Sensitivity, Kill Time and RFX will all have realistic values. Now you know you are connected. If you do not see these, you are NOT reading the shifter and need to start the process over again. 13) If ever in doubt, simply exit the app and start over, this whole process takes 10 seconds. In fact, we STRONGLY recommend that after any settings change or use of the app, when done, EXIT the app completely. This way you know you are out, and can only come back in from the start. You will know you are coming in from the start if you see the image of our shifter first when you open the app. If ever in need of help, contact us, always happy to assist you! 14) You are now ready to make changes to your QS PRO settings 15) The shifter comes pre-set with both directions Enabled, 60 Sensitivity, 55ms for Kill Time and RFX 18. 16) NOTE: RFX should be at 18, and always left at 18 unless you are having problems and have been in contact with our Customer Service directly. They will instruct you to make any changes, otherwise leave RFX at 18 and never change it. 17) As you can see, making changes are now very simple to do! 18 ) When you have your choices made, click UPLOAD, after which the status will return to “Ready."
